Site Infrastructure

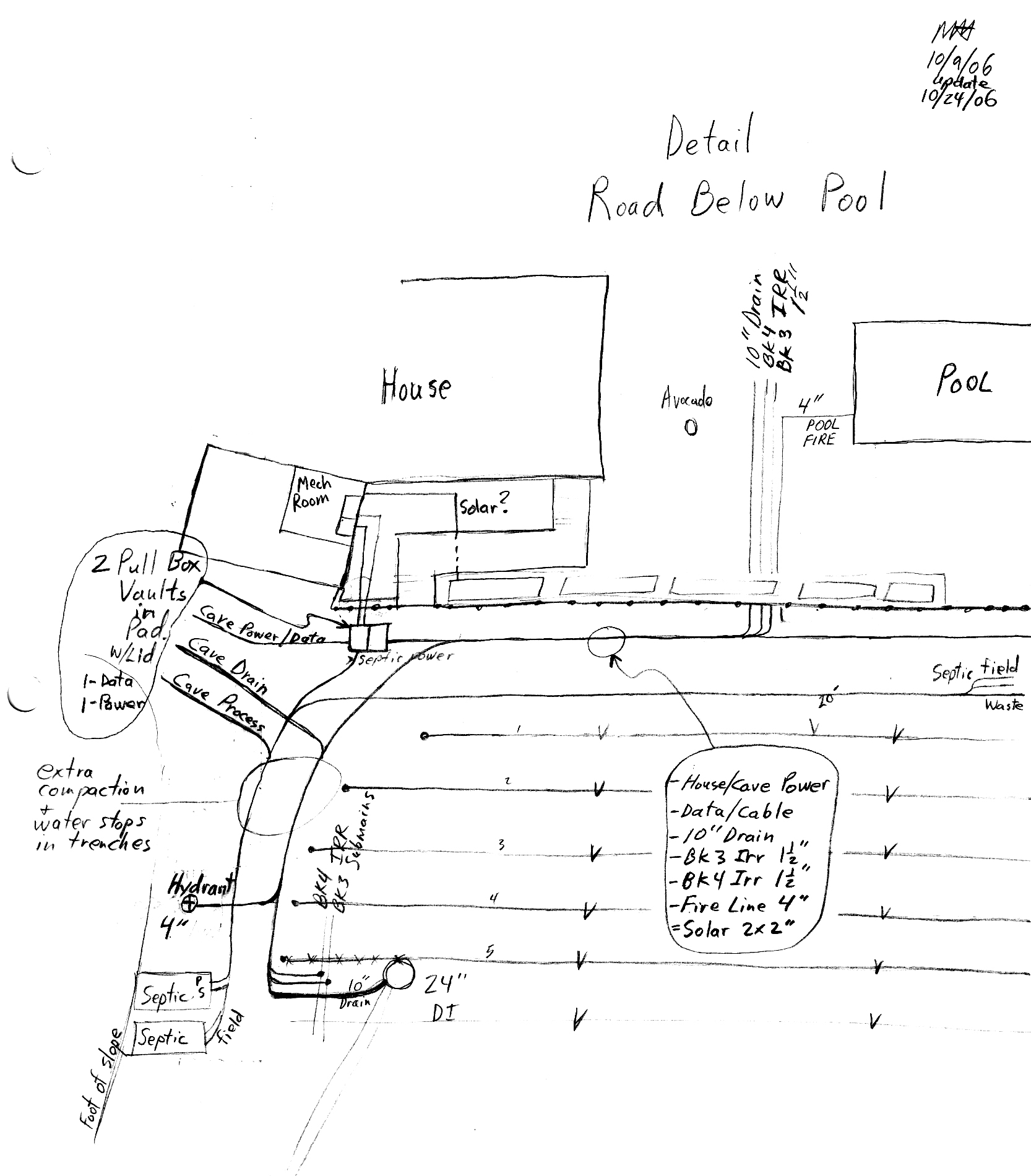

Trench Plan; All infrastructure

A 1" waterline to the cave and a spare is missing in this drawing.

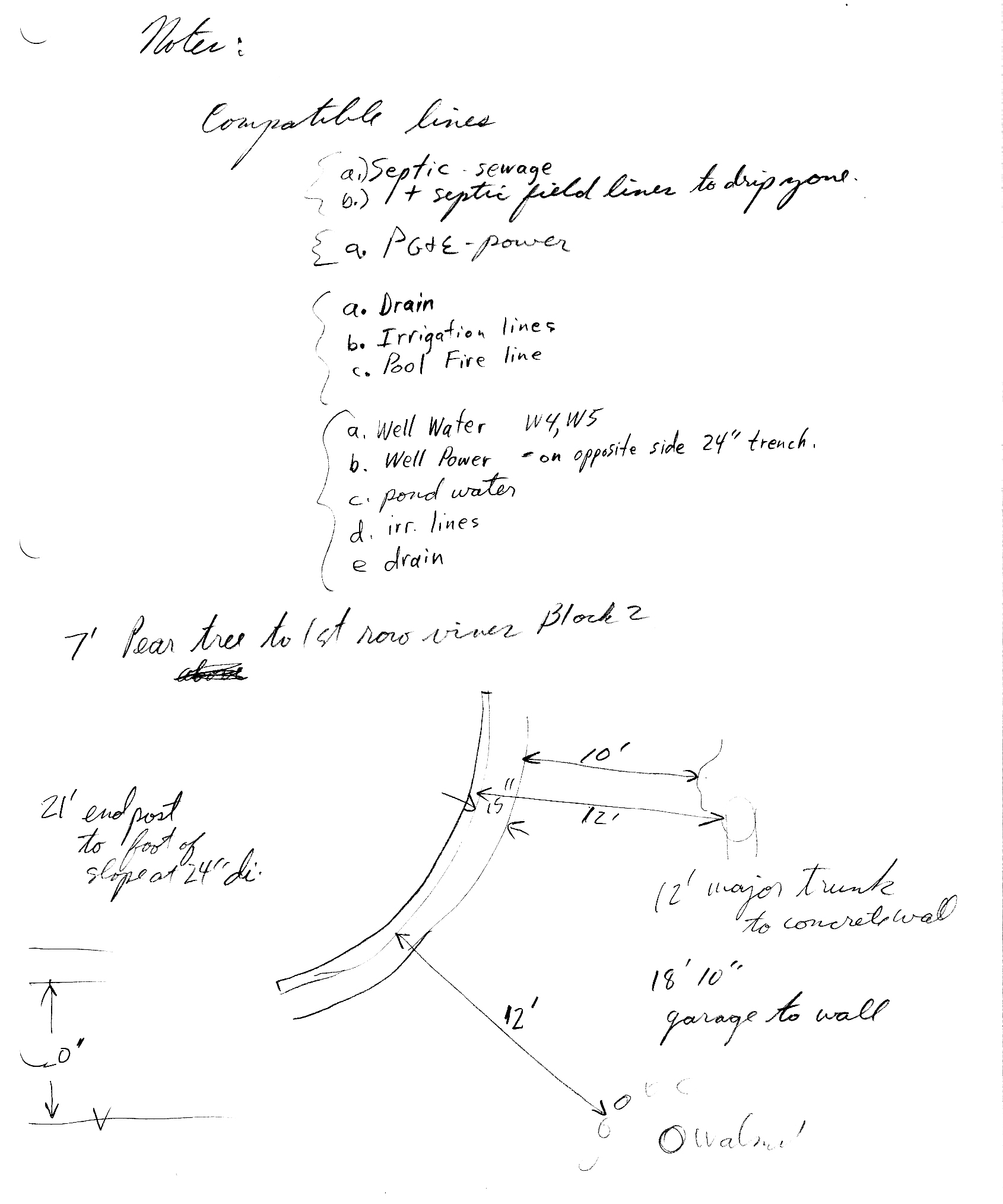

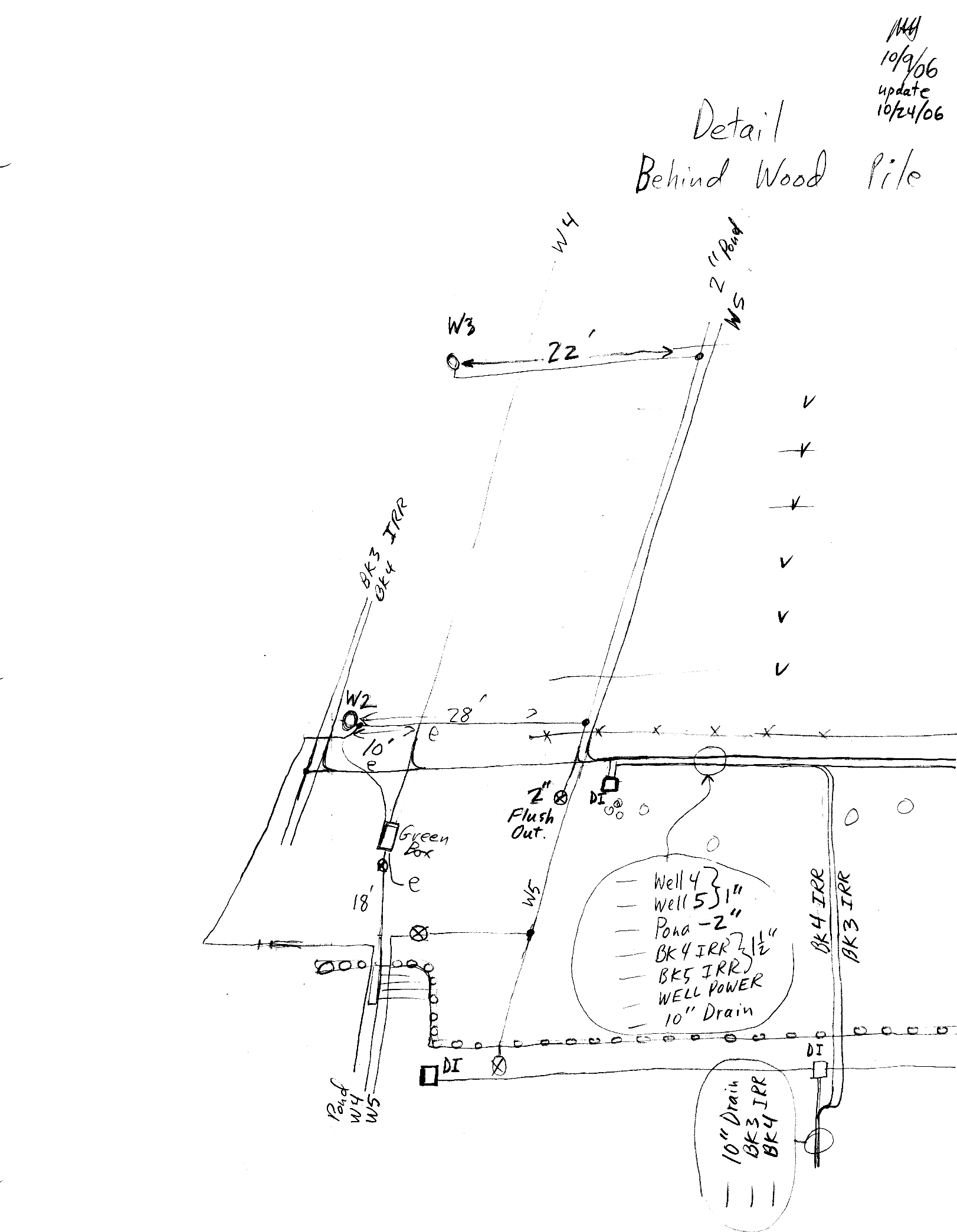

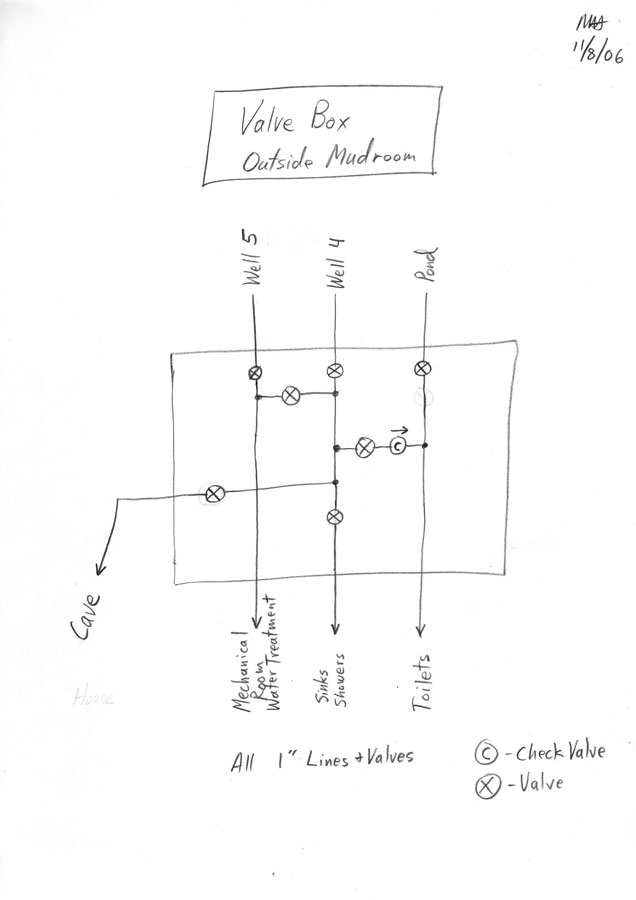

A detailed drawing of the irrigation lines hookup to the submains with air release, valve and pressure regulator at the hookup of the block 3 submain was provided on 10/27/06.

Note: Solar is a little more complicated than shown above.   This drawing needs some updating.

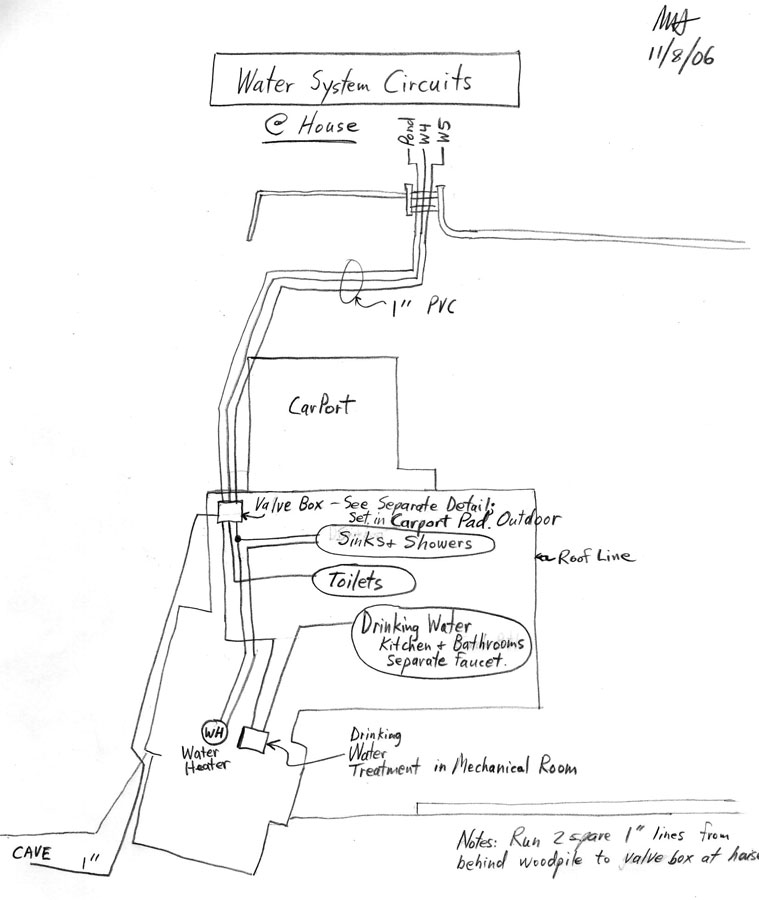

The above drawing needs a valve in the 2" line to allow Pond water to reach the house from the cistern.

Site Water Infrastructure  existing + plans   A little old now.

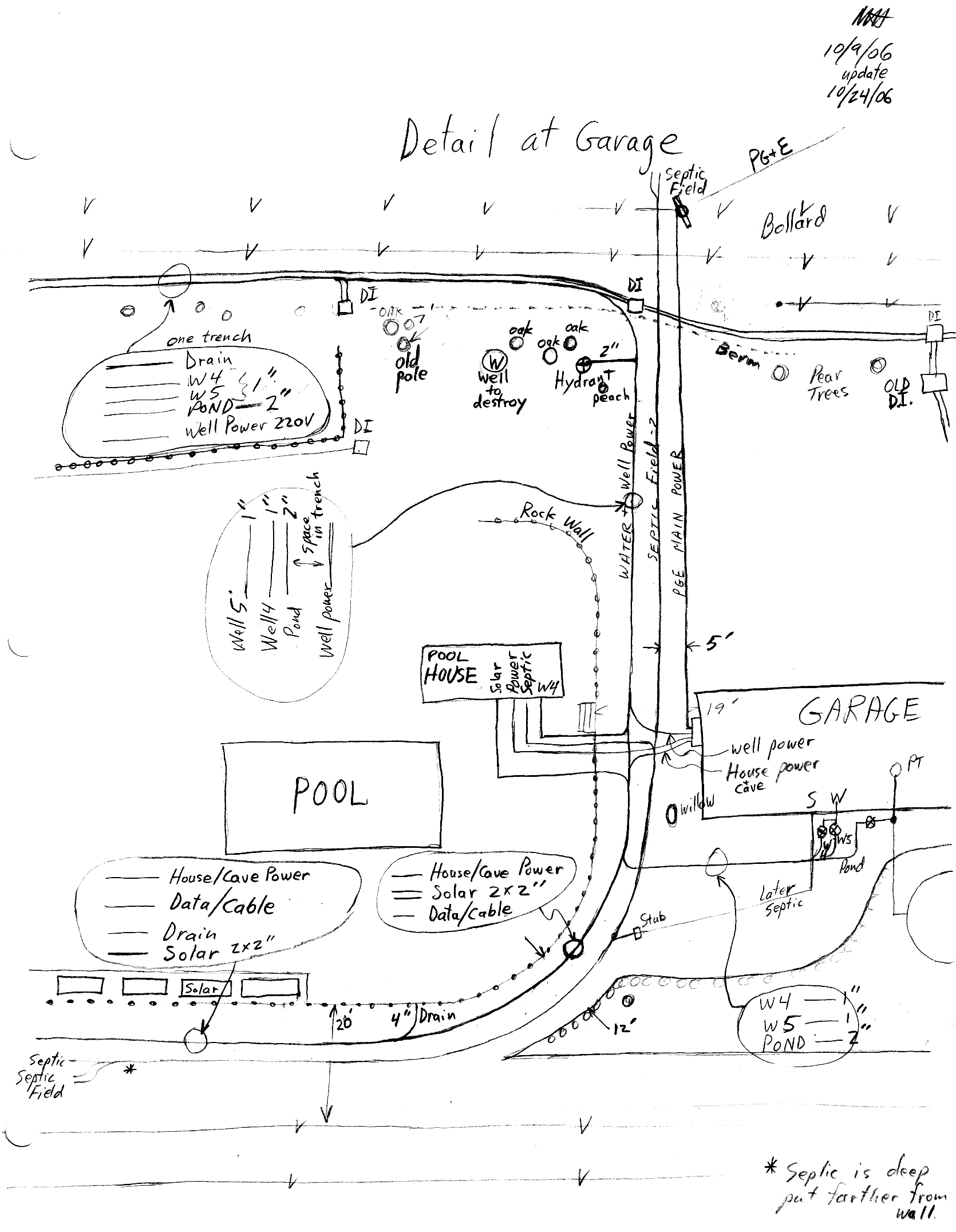

Site Electrical Infrastructure plan  Also Kind of old.

Last Updated 11/7/06 M.H.
